Collar plugs
Double-expanding universal wall plug manufactured from high-quality, halogen-free polyethylene (HDPE) for use in concrete, brick, lightweight concrete, Leca and plasterboard. The Colour Code System is coordinated with Thorsman. Available in nine colour-coded sizes.
- Double-expanding design for secure fixing in solid and cavity materials
- Colour Code System coordinated with Thorsman
- Anti-rotation collar and wings prevent the plug from turning or slipping into the drill hole
- Manufactured in Denmark & EPD-certified
- Available in nine colour-coded sizes
Brick
Concrete
Plasterboard
Hollow brick
AircreteDescription

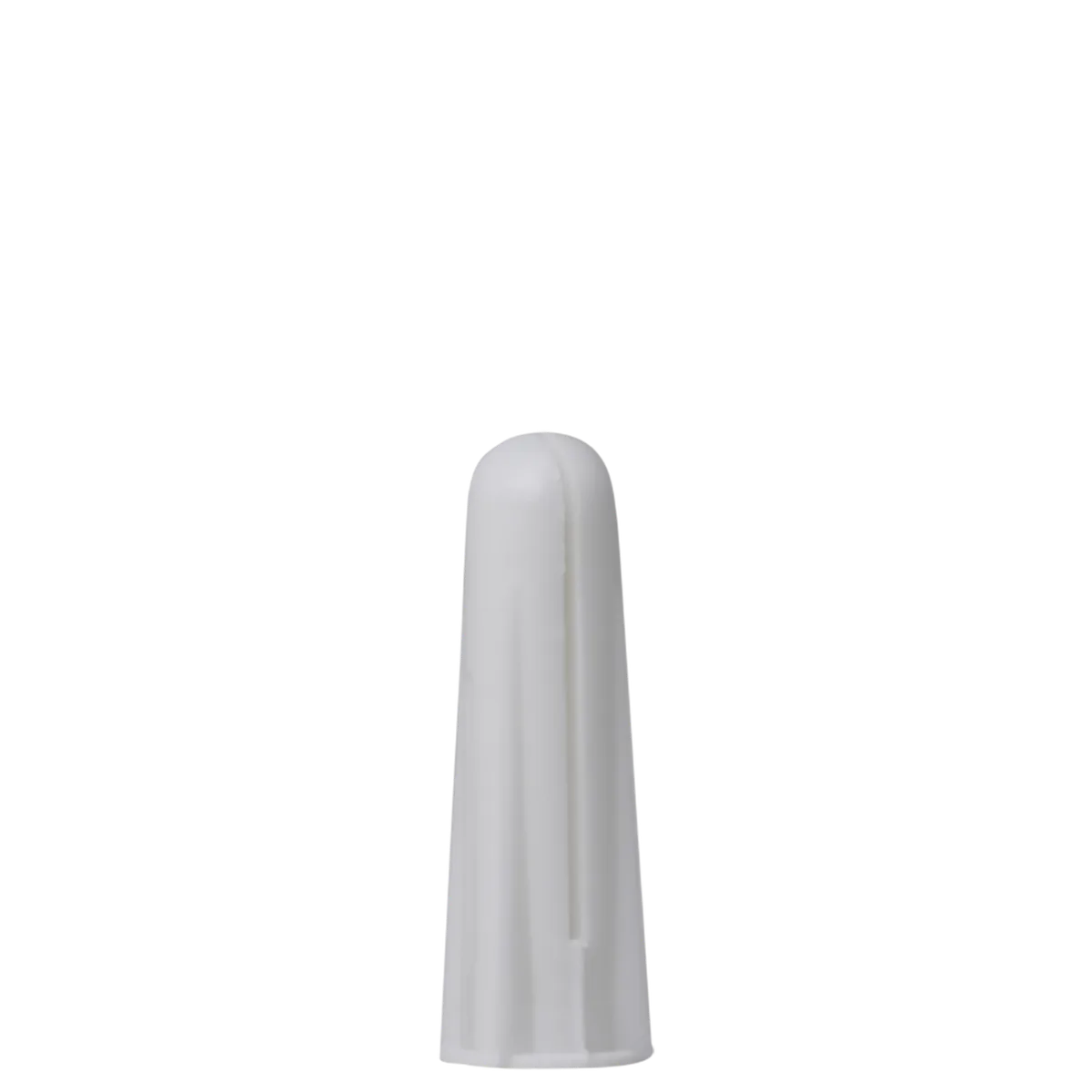

Tillex Collar Plugs (KP) are double-expanding universal wall plugs manufactured from high-quality, halogen-free polyethylene (HDPE). As the screw is tightened, the plug expands in both directions, providing a secure fixing in solid materials as well as lightweight and cavity substrates. The collar and anti-rotation wings prevent the plug from turning or slipping into the drill hole during installation. The Colour Code System is coordinated with Thorsman, making it easy to identify the correct plug size. Available in nine colour-coded sizes, from 5.5 × 20 mm (white) to 16 × 80 mm (orange), covering screw diameters from 3–12 mm.
Features:
• Double-expanding design for secure fixing in solid and cavity materials
• Colour Code System coordinated with Thorsman
• Anti-rotation collar and wings prevent the plug from turning or slipping into the drill hole
• Manufactured in Denmark & EPD-certified
• Available in nine colour-coded sizes
Colour Code System
Product range
All references in this range. Search any reference or E-number at the top of the site.
| Ref no. | Variant | Size | Colour | Screw Ø | Drill Ø | Dimension | Min. depth | Box size | Details | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 320001 | Collar plugs KP white 5,5×20 | 5,5 mm | White | 3-5 | 5,5 | 5,5×20 | 25 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320015 | Collar plugs KP yellow 5x5x25 | 5 mm | Yellow | 4-5 | 5,5 | 5,5×25 | 30 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320035 | Collar plugs KP purple 5,5×30 | 5,5 mm | Purple | 4-5 | 5,5 | 5,5×30 | 35 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320055 | Collar plugs KP red 5,5×35 | 5,5 mm | Red | 4-5 | 5,5 | 5,5×35 | 40 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320075 | Collar plugs KP brown 8,0×40 | 8,0 mm | Brown | 5-6 | 8 | 8,0×40 | 45 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320095 | Collar plugs KP blue 10×45 | 10 mm | Blue | 6-8 | 10 | 10×45 | 55 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320115 | Collar plugs KP green 12×60 | 12 mm | Green | 8-10 | 12 | 12×60 | 70 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320135 | Colalr plugs KP grey 14×70 | 14 mm | Grey | 10-12 | 14 | 14×70 | 80 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320145 | Collar plugs KP orange 16×80 | 16 mm | Orange | 12 | 16 | 16×80 | 90 | Box | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320550 | Collar plugs KP yellow 5,5×25 XL | 5,5 mm | Yellow | 4-5 | 5,5 | 5,5×25 | 30 | XL | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 320560 | Collar plugs KP red 5,5×35 XL | 5,5 mm | Red | 4-5 | 5,5 | 5,5×35 | 40 | XL | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 322127 | Collar plugs KP red 5,5×35 XXL | 5,5 mm | Red | 4-5 | 5,5 | Bucket | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 322318 | Collar plugs KP yellow 5,5×25 XXL | 5,5 mm | Yellow | 4-5 | 5,5 | Bucket | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| No variants match these filters. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Related products
-
Aerated concrete & Leca fixings
Attack plugs
Specially designed expanding plug manufactured from 100% recycled, halogen-free nylon (Polyamide 6) for secure fixings in aerated concrete (aircrete), lightweight…
Attack plugs 1345100 1345101 1345102 1380325 1380326 1380327 1507381 1507382 1507384 390001 390005 390015 5701925282773 5701925282872 5701925282971 8339344565 8339344578 8339344581 EPD -
Universal plugs (all-purpose)

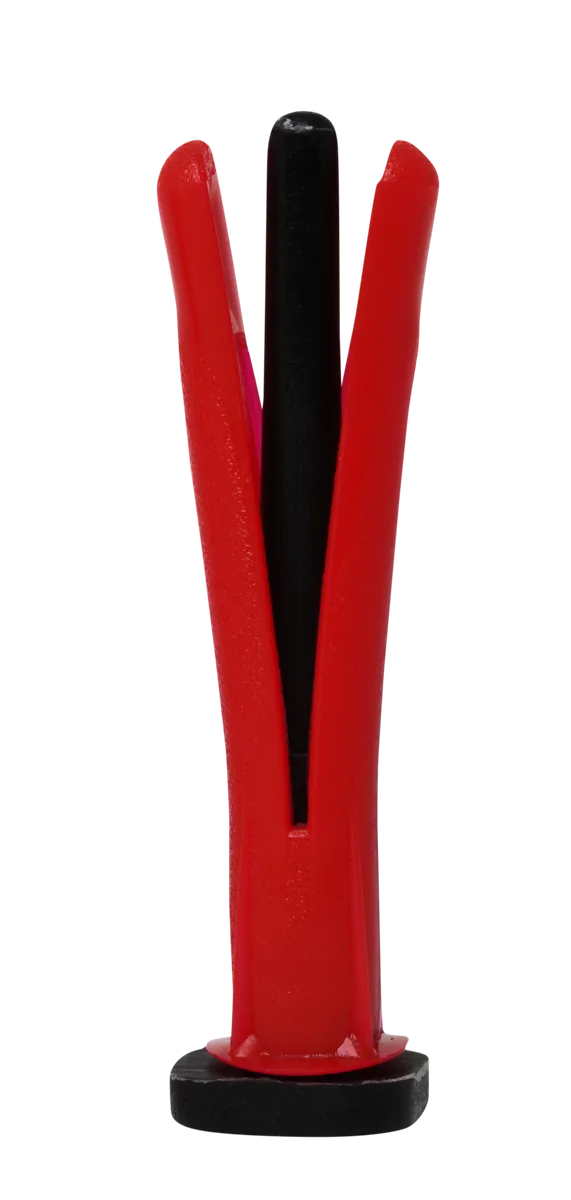

Collar plugs plus
