Universal plugs
Versatile expanding plug with collar, manufactured from high-quality, halogen-free polyethylene (HDPE) for use in nearly all building materials, including concrete, brick, natural stone, lightweight concrete, Leca and plasterboard. The collar prevents the plug from slipping into the drill hole during installation.
- Suitable for nearly all common building materials
- Collar prevents the plug from slipping into the drill hole
- Anti-rotation wings prevent the plug from turning during installation
- Manufactured from high-quality, halogen-free polyethylene (HDPE)
- Manufactured in Denmark & EPD-certified.
Brick
Plasterboard
Concrete
Aircrete
Leca
Hollow brickDescription

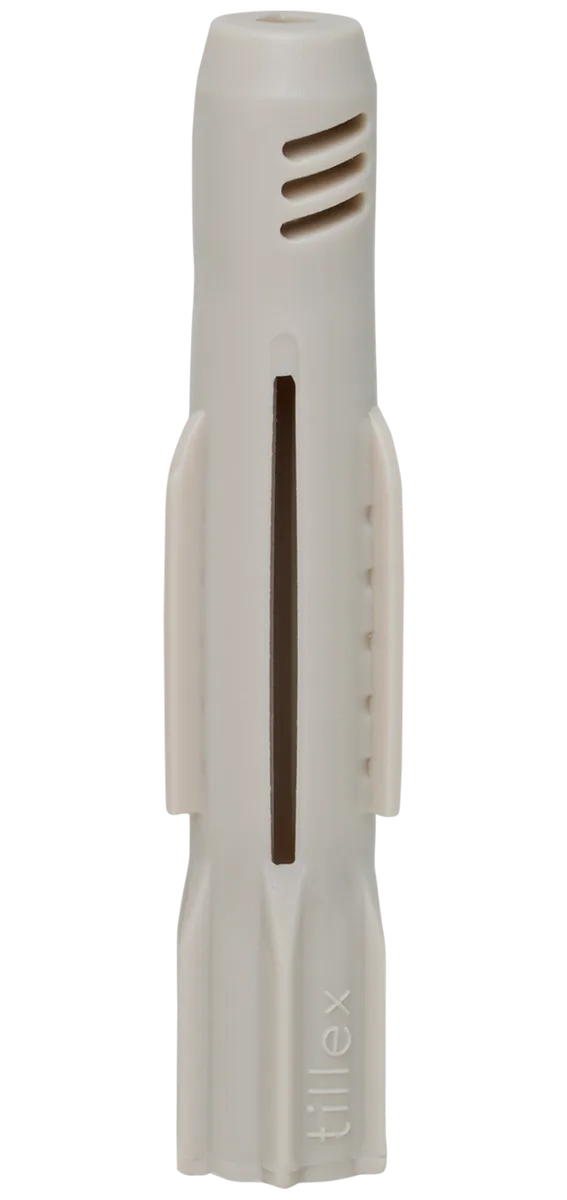

Tillex Universal Plugs with Collar (UPK) are versatile expanding plugs manufactured from high-quality, halogen-free polyethylene (HDPE). They are suitable for use in nearly all common building materials, including concrete, brick, natural stone, lightweight concrete, Leca and plasterboard. The collar rests on the surface of the material and prevents the plug from slipping into the drill hole during installation. Anti-rotation wings moulded into the body grip the substrate and prevent the plug from turning as the screw is tightened, ensuring a secure and reliable fixing. Compatible with wood screws, self-tapping screws and chipboard screws. Available in sizes UPK 5 (5 × 30 mm) to UPK 10 (10 × 60 mm).
Features:
• Suitable for nearly all common building materials
• Collar prevents the plug from slipping into the drill hole
• Anti-rotation wings prevent the plug from turning during installation
• Manufactured from high-quality, halogen-free polyethylene (HDPE)
• Manufactured in Denmark & EPD-certified.
Product range
All references in this range. Search any reference or E-number at the top of the site.
| Ref no. | Variant | Size | Colour | Screw Ø | Drill Ø | Dimension | Details | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 290005 | Universal plugs w/collar UPK 5×30 | 5 mm | Grey | 3-4 | 5 | 5×30 | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 290015 | Universal plugs w/collar UPK 6×35 | 6 mm | Grey | 4-5 | 6 | 6×35 | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 290025 | Universal plugs w/collar UPK 8×50 | 8 mm | Grey | 5-6 | 8 | 8×50 | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 290035 | Universal plugs w/collar UPK 10×60 | 10 mm | Grey | 6-8 | 10 | 10×60 | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 280010 | Universal plugs n/collar UP 5×30 | 5 mm | Grey | 3-4 | 5 | 5×30 | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 280020 | Universal plugs n/collar UP 6×35 | 6 mm | Grey | 4-5 | 6 | 6×35 | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 280030 | Universal plugs n/collar UP 8×50 | 8 mm | Grey | 5-6 | 8 | 8×50 | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 280040 | Universal plugs n/collar UP 10×60 | 10 mm | Grey | 6-8 | 10 | 10×60 | → | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| No variants match these filters. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
